Modifying an Android Application: Virtual & Physical Devices

NOTE

This tutorial is a continuation of the previous tutorials. Ensure your environment and virtual/physical device is prepared before continuing.

TIP

For convenience, consider adding all installed tools/tool packages to your system PATH environment variable to avoid navigation/the need to use absolute paths in commands.

To proceed with this tutorial, you will need to download/install the SSL Pinning Demo application.

SSL Pinning Demo

The SSL Pinning Demo is an Android application developed by HTTPToolkit for security education. It blocks HTTPS traffic from being proxied or intercepted via certificate pinning and a security configuration file.

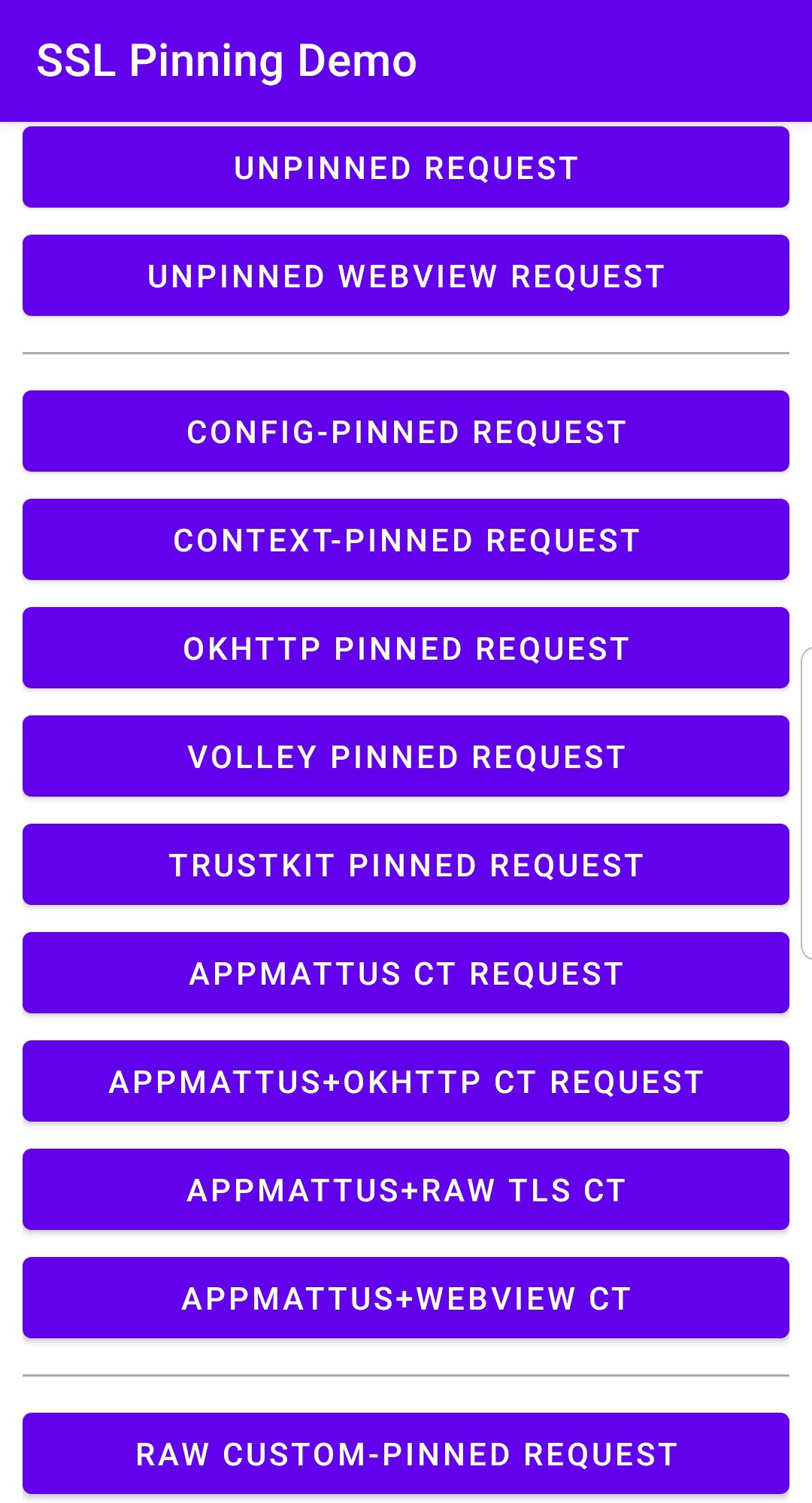

The application provides an array of buttons that issue requests under various secure and insecure configurations. Unpacking and modifying the Android Package Kit (APK) file bundle that comprises the application demonstrates how these protective measures can be bypassed.

If an application's traffic is still not proxied through Caido or you encounter errors or limited functionality, similar protective measures likely exist in its code or configuration.

NOTE

This tutorial was written using:

• SSL Pinning Demo v1.4.1. To download this release visit: https://github.com/httptoolkit/android-ssl-pinning-demo/releases/download/v1.4.1/pinning-demo.apk

We recommend using the same version to ensure the instructions align.

INFO

• This process does NOT require a rooted device.
• Be aware that the exact names and locations of setting options may vary between devices.
• Ensure to pay attention to any prompts on the device itself while proceeding through these steps.
• For physical devices, ensure the device is connected to the computer running Caido via USB and that both the device and the computer are on the same Wi-Fi network.
• For convenience, consider adding all installed tools/tool packages to your system PATH environment variable to avoid the need to use absolute paths in commands.

Once the SSL Pinning Demo v1.4.1 APK has been downloaded to your computer, to install it on your device:

1. In the Projects interface of the Android Studio window, click on the More Actions button and select SDK Manager.

2. Select Android SDK from the Languages & Frameworks drop-down menu.

3. Open a terminal and navigate to the file system location stated in the Android SDK Location field.

4. Navigate into the platform-tools directory.

5. Execute the adb tool with devices to ensure the device is listed.

./adb devices

6. Execute the adb tool with the device ID as the value of the -s argument and the file system location of the pinning-demo.apk as the value of the install argument to install the application.

./adb -s <device-id> install </path/to/pinning-demo.apk>

Extracting an APK

Once the SSL Pinning Demo v1.4.1 application has been installed on your device, to simulate extracting the APK from the installation:

1. Execute the adb tool against the device with shell to initialize a terminal:

./adb -s <device-id> shell

2. Find the application's base.apk package on your device by listing all the file paths of installed packages and filtering the results by the application name:

./pm list packages -f | grep -i pinning

3. Copy the absolute file path (starting from /data and ending with /base.apk) and exit the device command-line interface usingCTRL + D or by typing and entering exit.

4. Execute the adb tool against the device with the file path as the value of the pull argument to pull the APK to your computer.

./adb -s <device-id> pull </data/app/<path-segments>/base.apk>

Unpacking APKs

Once you have an application's APK, to decompile the package into its individual resources:

1. Download and install Apktool for your operating system.

2. Open a terminal and navigate to the file system location of the APK file.

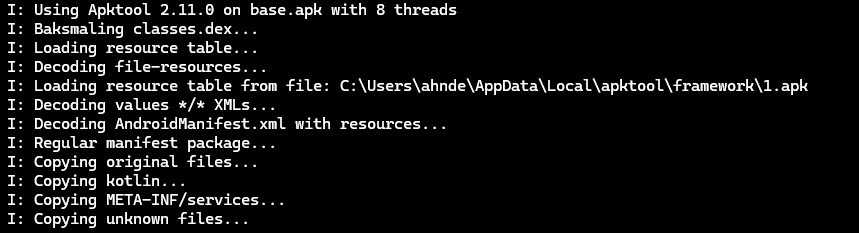

3. Execute apktool with d and the output directory (e.g. unpacked) as the value of the -o argument against the APK file (e.g. pinning-demo.apk) to unpack the contents to the specified directory.

./apktool d -o unpacked pinning-demo.apk

Modifying the Network Security Configuration File

Application traffic may be blocked from interception/proxying due to the presence of a Network Security Configuration file. Introduced in Android 7.0 (API level 24), the network_security_config.xml file allows developers to customize network security settings for their applications.

In some cases, modifying this file and including the <certificates src="user" overridePins="true" /> directive to trust user-supplied certificates may be sufficient enough to configure the application to be Caido compatible.

To make the appropriate changes:

1. Open the /res/xml/network_security_config.xml file from the unpacked directory in an editor (or, if it doesn't exist, create it).

2. Replace/write the content of the file to:

<?xml version="1.0" encoding="utf-8"?>
<network-security-config>
    <!-- Base configuration that applies to all connections if not overridden. -->
    <base-config>
        <!-- Define which certificates should be trusted as root CAs (trust anchors). -->
        <trust-anchors>
            <!-- Trust the pre-installed system certificates. -->
            <certificates src="system" />
            <!-- Trust user-installed certificates (like Caido's CA) and allow them to override certificate pinning. -->
            <certificates src="user" overridePins="true" />
        </trust-anchors>
    </base-config>
</network-security-config>

3. Save the changes to /res/xml/network_security_config.xml.

4. Ensure that the main configuration file, AndroidManifest.xml references the network_security_config.xml file via the android:networkSecurityConfig="@xml/network_security_config" attribute in the <application> tag. If you created a new network_security_config.xml file, you will have to explicitly add this.

5. Save any changes to AndroidManifest.xml.

6. Open a terminal and navigate to the file system location of the unpacked APK.

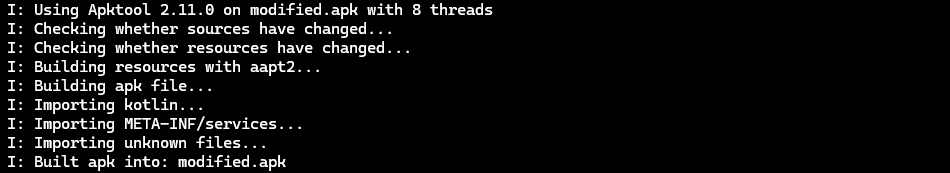

7. Execute apktool with b and the output filename (e.g. modified) as the value of the -o argument against the unpacked APK directory (e.g. unpacked) to repack the contents into an APK.

./apktool b -o modified.apk unpacked

8. Download and install Java Development Kit (JDK) for your operating system.

9. Open a new terminal and navigate to the /bin directory of the JDK installation.

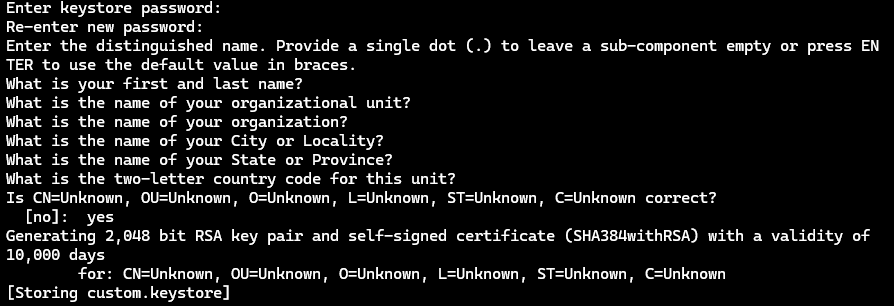

10. Execute keytool to generate a signing key with a keystore filename as the value of the -keystore argument (e.g. custom.keystore).

./keytool -genkey -v -keystore custom.keystore -alias aliasname -keyalg RSA -keysize 2048 -validity 10000

11. Follow the prompts to configure the key.

12. Navigate to the file system location stated in the Android SDK Location field.

13. Navigate into the version subdirectory of the build-tools directory.

14. Execute zipalign with -p 4 against the file system location of the repacked APK filename (e.g. modified.apk) and specify a new APK file system location for the aligned file (e.g. aligned.apk).

./zipalign -p 4 </path/to/modified.apk> </path/to/aligned.apk>

15. Sign the APK with:

./apksigner sign --ks </path/to/custom.keystore> </path/to/aligned.apk>

16. Navigate to the platform-tools directory.

17. Execute the adb tool against the device with uninstall tech.httptoolkit.pinning_demo to uninstall the existing installation.

./adb -s <device-id> uninstall tech.httptoolkit.pinning_demo

18. Install the modified application on the device.

./adb -s <device-id> install </path/to/aligned.apk>

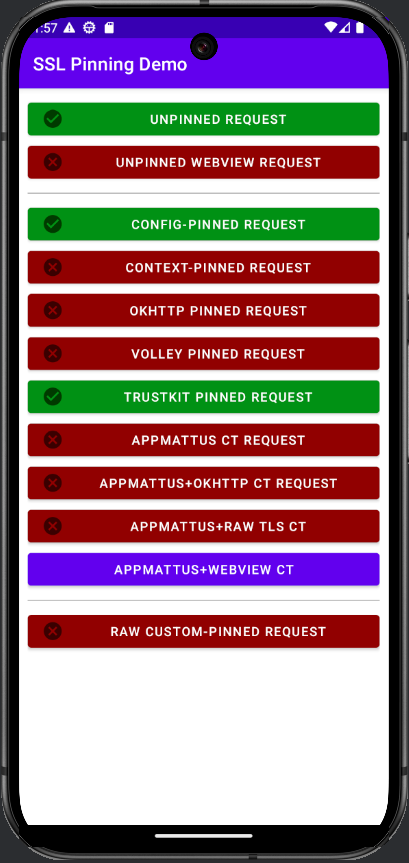

Open the SSL Pinning Demo application on your device. Modifying the network_security_config.xml file allows for the following requests (highlighted in green):

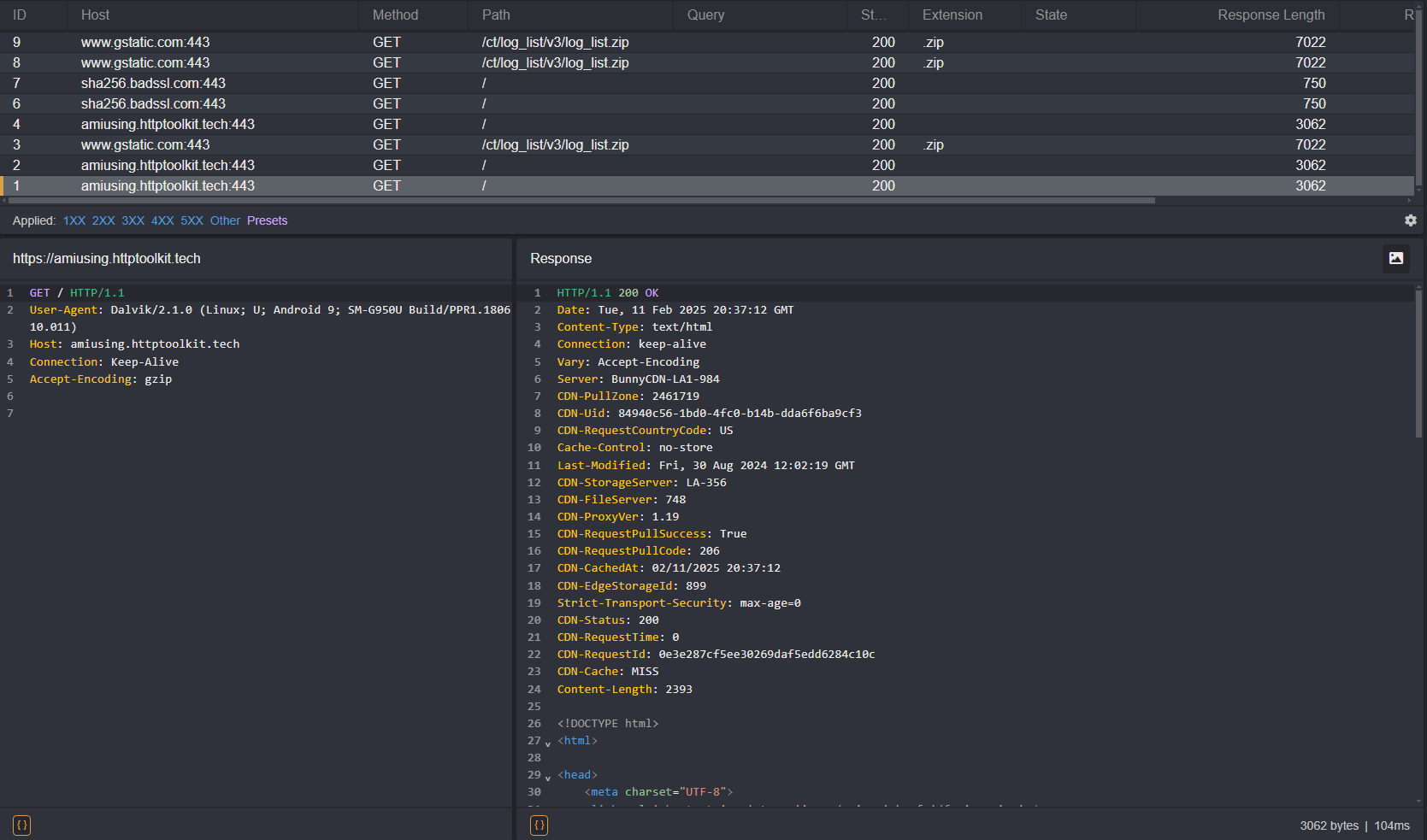

You will now see traffic generated by the application in Caido's HTTP History traffic table.

As you can see, certain requests still result in an error message and are not proxied through Caido. This is due to certificate pinning within the codebase itself.

Frida

Frida is a toolkit that allows you to hook custom scripts into running Android application processes, enabling real-time analysis and modification. This can be used to modify the processes are checking the SSL/TLS certificates.

Download Frida's CLI tools.

Frida Gadget

Since certain Frida operations may not work with unrooted devices, you will also need the Frida Gadget library. Once we inject the library into the APK, we can then send commands to it using the CLI tools.

To check what download you will need for your device's architecture:

1. Navigate to the platform-tools directory.

2. Execute the adb tool against the device with shell getprop ro.product.cpu.abi to get the device's CPU ABI.

./adb -s <device-id> shell getprop ro.product.cpu.abi

Then, choose the appropriate Frida Gadget library download:

• For armeabi-v7a or armeabi: android-arm.so.xz
• For arm64-v8a: android-arm64.so.xz
• For x86: android-x86.so.xz
• For x86_64: android-x86_64.so.xz

TIP

The provided links will download v16.6.6. View the latest releases in the Frida repository.

Once downloaded, extract the library and rename it to:

libfrida-gadget.so

Bypassing Hardcoded Certificate Pinning

To bypass hardcoded certificate pinning protections, we will need to insert the Frida Gadget library into the main "activity" stated in the AndroidManifest.xml configuration file. In Android development, an activity is the term used to refer to a specific page/screen of the application.

1. Open the AndroidManifest.xml file of the unpacked APK in a text editor:

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android" android:compileSdkVersion="33" android:compileSdkVersionCodename="13" package="tech.httptoolkit.pinning_demo" platformBuildVersionCode="33" platformBuildVersionName="13">
    <uses-permission android:name="android.permission.INTERNET"/>
    <application android:allowBackup="true" android:appComponentFactory="androidx.core.app.CoreComponentFactory" android:extractNativeLibs="false" android:icon="@mipmap/ic_launcher" android:label="@string/app_name" android:networkSecurityConfig="@xml/network_security_config" android:roundIcon="@mipmap/ic_launcher_round" android:supportsRtl="true" android:theme="@style/Theme.MyApplication">
        <activity android:exported="true" android:name="tech.httptoolkit.pinning_demo.MainActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN"/>
                <category android:name="android.intent.category.LAUNCHER"/>
            </intent-filter>
        </activity>
    </application>
</manifest>

2. The application tag will contain an android:extractNativeLibs attribute. In order for the Frida Gadget library to function properly, this needs to be set to "true":

android:extractNativeLibs="true"

3. Next, search for the activity tag with a nested intent-filter tag that contains:

<action android:name="android.intent.action.MAIN"/>
<category android:name="android.intent.category.LAUNCHER"/>

Within this activity tag will be a android:name attribute which stores the full name of the package that serves the main activity of the application upon launch:

tech.httptoolkit.pinning_demo.MainActivity

INFO

The packages can be recognized by their ending syntax of <Keyword>Activity (e.g. MainActivity, SplashActivity, WindowActivity, LauncherActivity, etc.).

4. Recursively search through the unpacked APK for the MainActivity's .smali file.

5. Open the smali/tech/httptoolkit/pinning_demo/MainActivity.smali file and locate the .method public constructor <init>()V initialization function:

.method public constructor <init>()V
    .locals 0

    .line 51
    invoke-direct {p0}, Landroidx/appcompat/app/AppCompatActivity;-><init>()V

    return-void
.end method

6. Modify this function class definition to include the Frida Gadget script and increment the value of its .locals property to account for the change:

.method public constructor <init>()V
    .locals 1

    const-string v0, "frida-gadget"
    invoke-static {v0}, Ljava/lang/System;->loadLibrary(Ljava/lang/String;)V

    .line 51
    invoke-direct {p0}, Landroidx/appcompat/app/AppCompatActivity;-><init>()V

    return-void
.end method

7. Next, create a lib directory in the unpacked APK folder, an architecture specific subdirectory, and move the libfrida-gadget.so file into it (example: /unpacked/lib/x86_64/libfrida-gadget.so).

8. Navigate to the platform-tools directory.

9. Execute the adb tool against the device with b and the output filename (e.g. frida-app.apk) as the value of the -o argument against the unpacked APK directory (e.g. unpacked) to repack the contents into an APK.

./apktool b -o frida-app.apk <path/to/unpacked>

10. Navigate into the version subdirectory of the build-tools directory.

11. Sign the APK with:

./apksigner sign --ks custom.keystore frida-app.apk

12. Uninstall the original application from the device:

./adb uninstall tech.httptoolkit.pinning_demo

13. Install the modified APK:

./adb install frida-app.apk

14. Next, open the SSL Pinning Demo application on your device. The screen will be blank as it is awaiting the script that will hook into the application's initialization. Supply it with:

./frida -U gadget --codeshare fdciabdul/frida-multiple-bypass

15. Depending on the script used, you will now be able to make additional requests that were previously blocked when we only modified the network_security_config.xml file and see traffic in Caido's HTTP History.

Bypass Scripts

Various HTTP libraries and their versions will require certain scripts in order to successfully bypass them.

Frida CodeShare

Frida Codeshare is Frida's official repository of scripts that can be called using the --codeshare command-line option.

./frida -U gadget --codeshare <author>/<file>

WARNING

When sourcing files online, ensure to evaluate the code for any malicious operations before executing it.

You can also write them yourself or source them alternative repositories. To specify a file, use the -l command-line option followed by the file's location:

./frida -U gadget -l <file>
